Description

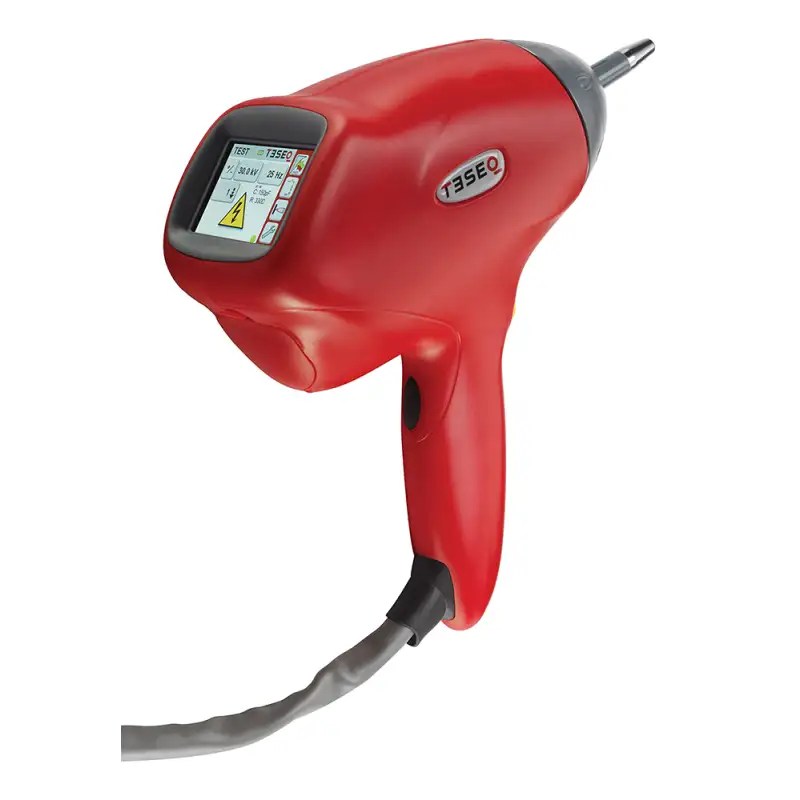

Teseq NSG 437 30kV ESD Simulator is designed to sit comfortably in the operator’s hand, with operating conditions constantly displayed and accessible on a bright, clear color touch display. NSG 437 comprehensively fulfills virtually all international standard requirements and meets any of today’s automotive manufacturers’ standards. The simulator is simple, convenient and safe to use. The whole range of parameter settings including polarity selection, freely adjustable pulse repetition, counter functions and discharge detection is available up to the maximum discharge voltage.
MAIN FEATURES
Air- and contact-discharge to 30 kV
Color touch panel control
Advanced voltage-hold feature
Activity log
Light version with uncompromising test
performance
Compliant with a huge range of OEM and
international standards
Easily and quickly interchangeable
discharge networks
Discharge detector
Specifications :
Parameter Teseq NSG 437
Pulse network 150 pF / 330 Ω as per IEC 61000-4-2 and ISO 10605
Discharge voltage Contact discharge: 200 … 30’000 V (in 100 V steps)
Air discharge: 200 … 30’000 V (in 100 V steps)
Charging voltage accuracy < +/- 5 %
Frequency / repetition 0.5, 1, 5, 10, 20, 25* Hz (* only in AD mode)
Polarity pos / neg / automatic change
Operating modes single / continuous
Counter 1 … 9’999
Holding time > 5 s (charging voltage +/- 5 %)
Discharge detection Yes, AD only. Indication display / acoustically
Auto-shut-off After 15 minutes idle time (w/o loss of test parameters)
Discharge tips exchangable, ball and point as per IEC 61000-4-2
Display Color touch screen
Power mains (base station) 100 … 250 VAC 60 / 60 Hz
Weight Discharge pistol (w/o cable): approx. 1.2 kg
Base station : approx. 5.7 kg
Ambient conditions (operation) + 5 … +40 °C / 20 … 80 % humidity (non condensing) / 68 … 106 kPA
