Description

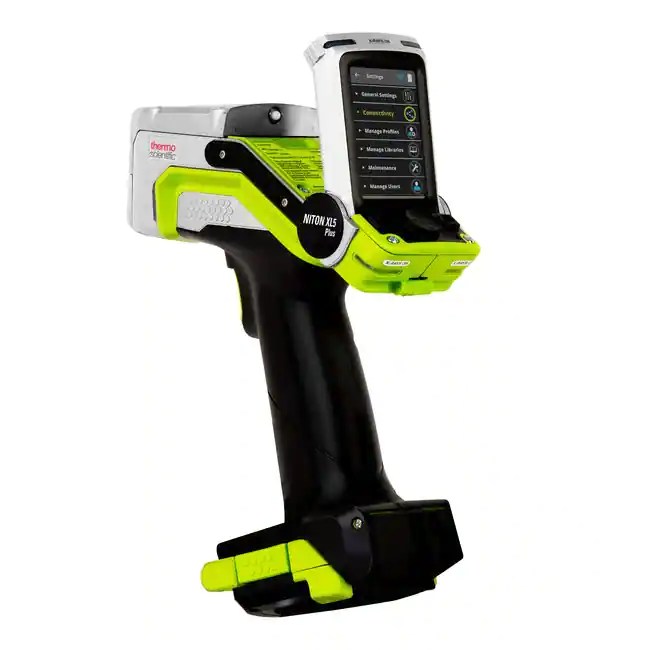

Thermo Scientific Niton XL5 Plus hand-held XRF analyzer, now improved for greater sensitivity of the light elements spectrum. Identify pure metals and alloys, detect tramp elements, or acquire geochemical data. Industrial companies depend upon the Niton XL5 Plus analyzer for more than low detection limits. It generates rapid results and offers brilliant versatility, which includes the capacity to test an extensive range of materials with a single analyzer.
Niton XL5 Plus Designed for Durability
The Niton XL5 Plus Handheld XRF Analyzer is rugged, splash resistant (IP54 compliant), and has dustproof housing for harsh environments. In addition, an upgraded extra-large area silicon drift detector incorporates a graphene window and the Detector Pro Guard Shield for added sensitivity and durability.
Features
- 5W X-ray tube
- Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
- Lightweight design (2.8 lbs/ 1.3 kg)
- Miniaturized nose
- WiFi enabled
- Macro and micro cameras
- Hot swap battery
- Tilting, color touchscreen
- Directional keys
- Password protected security
Niton XL5 Plus Handheld XRF Analyzer Applications:
The Niton XL5 Plus Handheld XRF Analyzer excels in alloy analysis, enabling positive material identification (PMI) and quality assurance/quality control (QA/QC) in fabrication processes. It is also indispensable in scrap metal recycling, coatings analysis, and mining operations. Additionally, the analyzer proves its worth in exploration activities such as soil sampling and drill core evaluation. It is equally valuable for grade control and process control purposes in mining and environmental applications, including soil remediation. Notably, it offers the ability to determine lead paint action levels (PCS sheet required), considering the different regulations in the USA and Canada.
Specifications:
| Niton XL5 Plus Specifications | ||
|---|---|---|
| Weight | 2.8 lbs with battery (1.3 kg | |
| Dimensions | 9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.90 mm) | |
| Detector | High count rate, high resolution, extra-large area silicon drift detector (1µm graphene window) Detector ProGuard protection included |
|
| X-Ray Source | X-Ray Tube: Ag anode (6-50kV, 0-500uA, 5W max) Filter: Six (6) position filter wheel for enhanced spectral range coverage Current: Dynamically adjustable current for optimal sensitivity on every analysis |
|
| Spot Size | Standard: 8mm collimation Optional: 3mm small-spot collimation |
|
| Calibration Modes | General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Spectral Fingerprint, TestAll™ |
|
| Analytical Range | Mg-U (ultra-low light element detection), Na (spectrum-based detection) | |
| Libraries | Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards Users may create, clone and edit libraries |
|
| System Check | System Check | |
| Operating Environment | Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C) Humidity: 10% to 90% relative humidity non-condensing |
|
| IP Rating | IP54 (splash and dust proof) | |
| Display | Tilting, color, resistive touchscreen display | |
| Power | 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply Hot swap functionality keeps analyzer powered during battery replacements |
|
| Macro Camera | Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations | |
| Micro Camera | Integrated CCD micro camera for locating and recording measurement positions | |
| Global Positioning System | internal GPS and optional external GPS (via Bluetooth) GPS data included with sample information |
|
| Bluetooth | Supports print functionality, external GPS connectivity and barcode reader | |
| Memory / Data Storage | 512 MB internal system memory / 16 GB industrial grade storage Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved) |
|
| Data Entry | Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader |
|
| Data Transfer | WiFi, USB-c | |
| Operating System | Linux | |
| Support Software | Nito Connect PC software | |
| Security | Password-protected user security | |
| Languages | English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian | |
| Standard Accessories | Locking shielded carrying case Two (2) lithium-ion battery packs One (1) 110/220 VAC battery charger/ AC adaptor Check samples Safety lanyard PC connection cable (USB) |
|
| Optional Accessories | Thermo Scientific portable test stand Thermo Scientific mini test stand Thermo Scientific backscatter shield Thermo Scientific hotwork stand off Thermo Scientific soil guard Thermo Scientific belt holster Bluetooth printer |
|
| Compliance | Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010 | |
| Licensing / Registration | Varies by region. Contact your local distributor. |
Datasheet User Manual PDF: https://www.thermofisher.com/order/catalog/product/NITONXL5PLUS
