Name: Hitachi X-MET8000 XRF Analyzer
Brand: Hitachi
SKU: 110
Availability: InStock

The pre-loaded libraries includes:

Nickel alloys.
Stainless steels.
Copper alloys.
Aluminium alloys.
Cobalt alloys.
Low alloy steels.
Tool steels.
Titanium alloys.
zirconium alloys.
And more…

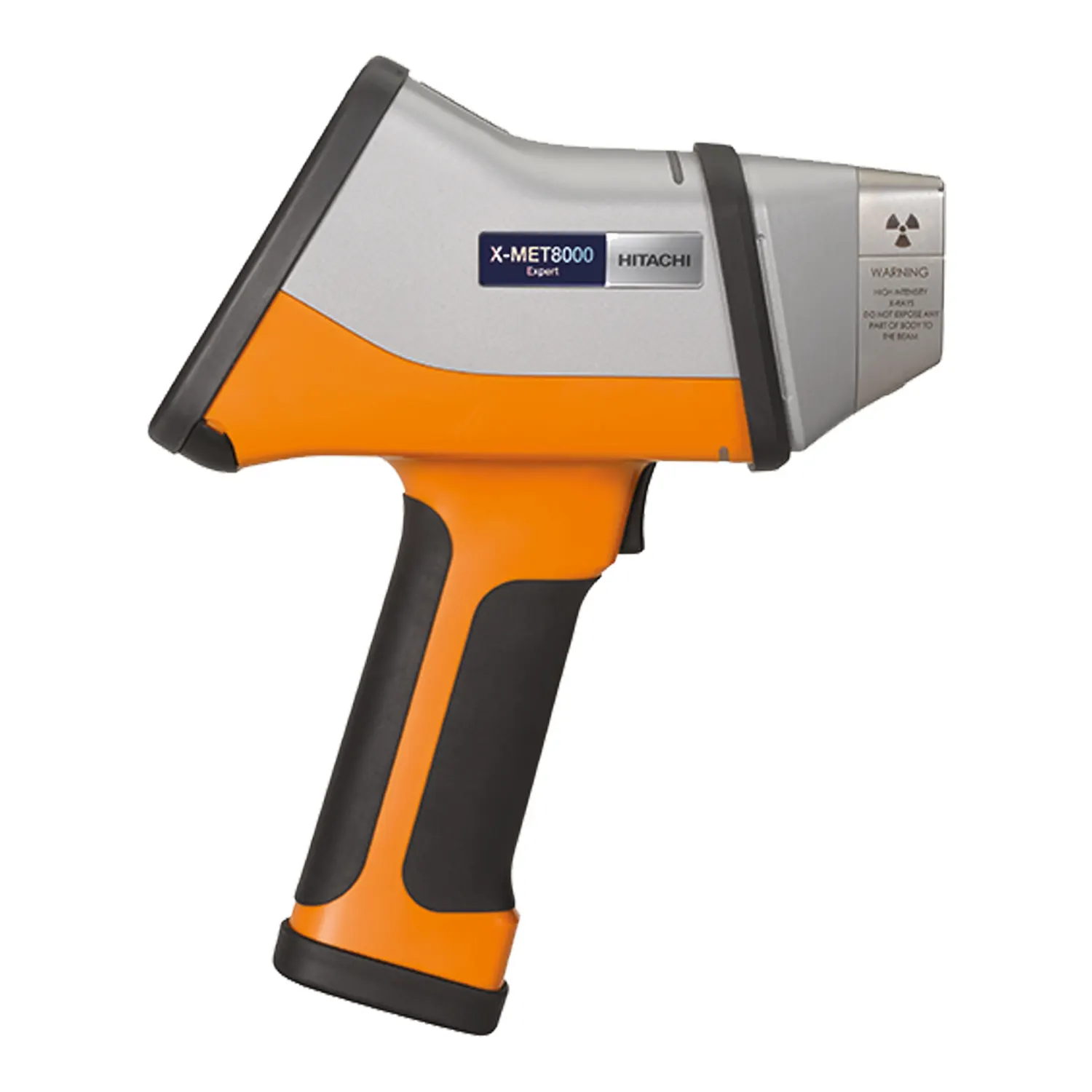

Hitachi X-Met8000 Handheld XRF Analyzer

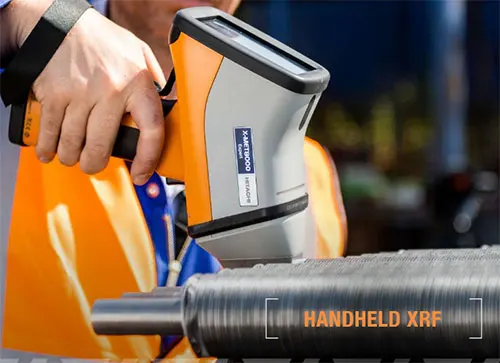

The Hitachi X-MET8000 is a handheld X-ray fluorescence (XRF) analyser that delivers ultimate on-site alloy analysis for safety critical applications. It’s light and ergonomic, making it comfortable for daily use. With an optimized nose design, it easily tests material inside bends and corners. And thanks to our unique HERO (heat resistant) window, you can analyse alloys at up to 400ºC accurately. With X-MET8000 you can minimise laboratory testing and reduce costs whilst ensuring safety and compliance.

Hitachi X-MET8000 Smart PMI XRF Analyser can provide results on-site in seconds, reliant on the application. Phenomenal consistency and speed, with no requirement to return for lab evaluation, mean optimum productivity, lower costs, and an all-essential edge over your competitors. You can deposit data on the analyzer, a USB flash drive, or through our app and cloud service for immediate sharing.

X-MET8000 Smart tests a vast range of materials – solids, powders, or liquids – the X-MET8000 is ideal for analyzing metals, soils, wood, plastics, glass, oils, and more. The analysis is non-destructive and leaves no test mark.

Features of Hitachi X-MET8000 Smart PMI XRF Analyser:

X-ray tube: 40kV
X-ray tube filters: Single
Detector: Large area SDD
Max. sample temperature: 100ºC
IP54 rating
Protection against detector window damage: Window shield
Calibrations: Standardless (FP)
Integrated camera (Optional)

RESULTS YOU CAN TRUST: The X-MET8000 offers the best of both worlds with versatile fundamental parameters (FP) method andempirical calibrations (traceable to certified reference materials) for superior precision and accuracy

ULTIMATE PERFORMANCE: It’s great for the analysis of light elements (Mg to S) for tight control of components and systems. Low limits of detection deliver accurate trace/tramp elements analysis and grade identification.

EASY TO USE: The intuitive, icon-driven user display means that minimal operator training is required. The large screen is easy to read and can be operated whilst wearing gloves. No tool is needed to change the quick-swap analysis window when broken or dirty

ROBUST: X-MET8000 is IP54 compliant (equivalent to NEMA 3) for super protection against dust and water. It has been tested to the MIL-STD-810G military standard for ruggedness.

OPTIONAL COLLIMATOR: An optional small-spot collimator (3 mm diameter) can be used to isolate specific features (e.g. welds) from surrounding materials and measure them accurately.

BUILT TO LAST: The X-MET8000 has an impact-resistant housing with environmental sealing, and rubber bumpers around the screen, nose and battery to protect against shocks. A large heat sink provides optimum robustness and stability, even in hot environments. The shield (optional for Expert and Optimum models) or robust, thick Kapton® window (Smart model) prevent the detector and X-ray tube damage when testing small components and sharp objects.

POWERFUL DATA MANAGEMENT: Store up to 100,000 results including spectra and sample image (if camera is fitted). Download results and reports directly to a USB stick, to a PC or a network share using WiFi or Bluetooth, using CSV format or tamper-proof PDF for ultimate data integrity. Create your own reports using X-MET report generator (no software installation needed). This can include company logo, sample image, results, spectra and additional sample information. You can share results on-the-go with suppliers, customers or colleagues with our app.

EXTENSIVE, CUSTOMISABLE GRADE LIBRARY: The X-MET8000 includes the most comprehensive grade library: the pre-installed, user selectable AISI, DIN, JIS and GB libraries include a total of over 1600 alloys. Users can modify the existing libraries, add new grades (such as manufacturer or location specific grades), or create their own library (e.g. for specific welding material).

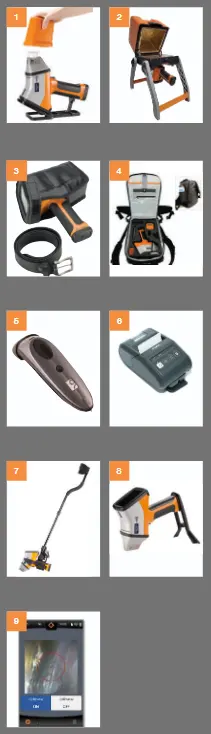

ACCESSORIES

Radiation safety accessories

1. Light travel stand with safety shield: Included in some packages, it fits in the X-MET case for portability.
2. BENCHTOP STAND: Transform the X-MET8000 into a benchtop analyser in seconds to increase productivity and operator safety when measuring small, thin or irregular pieces. The large chamber enables the measurement of a wide variety of sample shapes and sizes.

Optional Accessories

3. HOLSTER AND BELT: Hands-free on-site transportation of the analyzer.

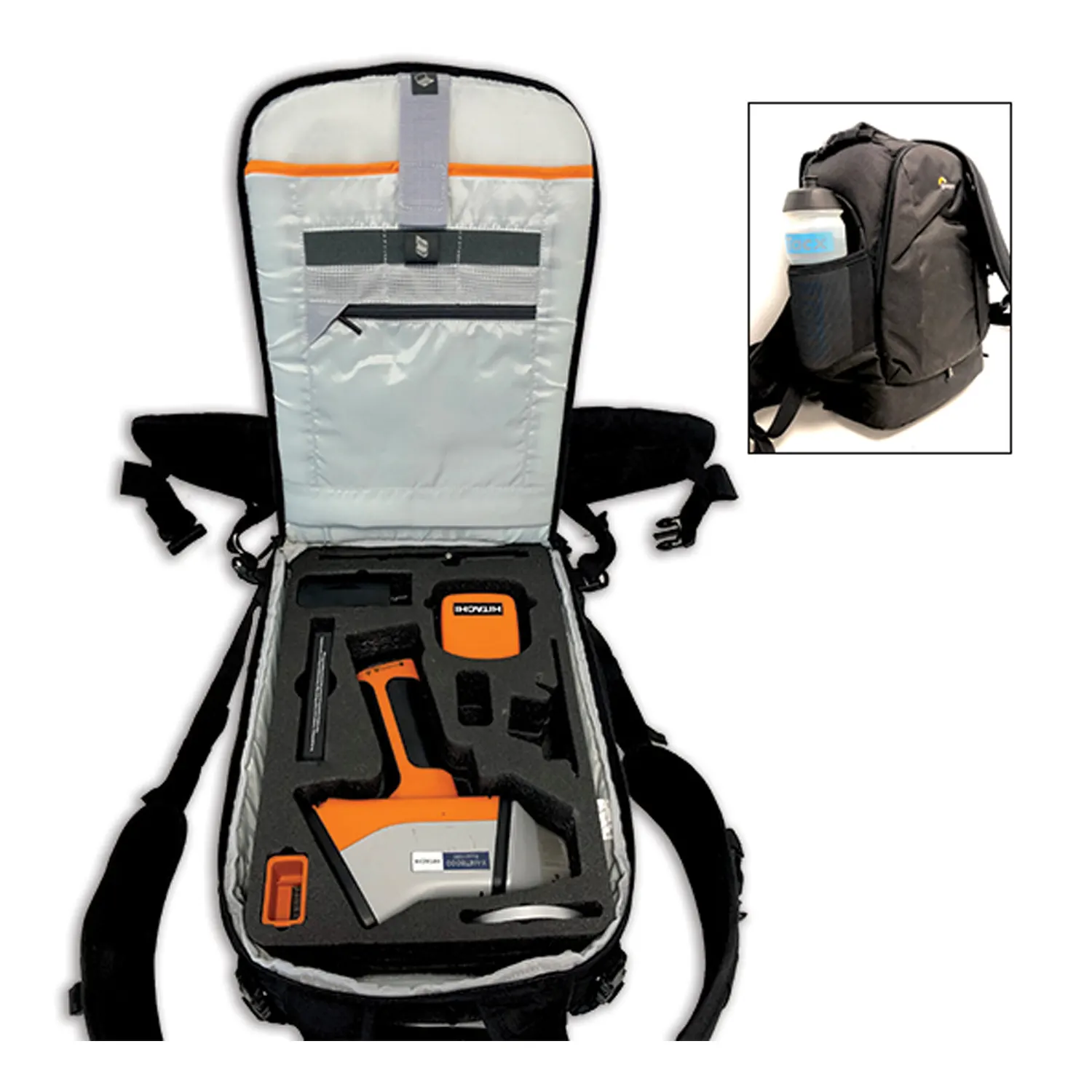

4. BACKPACK: A comfortable backpack for remote and difficult to reach places where carrying the X-MET8000 in its normal case isn’t convenient or even safe like onboard a ship or to walk long distances when doing geochemical mapping.
5. BLUETOOTH BARCODE SCANNER: Prevent typing errors when entering sample labels or additional information in the X-MET user interface. Simply scan the sample barcode to fill the information in your chosen field on the X-MET screen.
6. BLUETOOTH PRINTER: Print results on paper or sticky labels and attach them to test pieces; convenient and mix-up free.
7. X-MET POLE: For hard to reach analysis places, the X-MET pole offers a simple solution with improved measurement ergonomics. It’s particularly useful when measurements are needed over a large area.
8. BIPOD: When longer analysis times are needed, i.e. greater than 30 seconds, the bipod avoids the need to hold the analyzer in your hand.
9. SMALL-SPOT COLLIMATOR: For accurate measurement of small features such as welds, enabling to isolate the area of interest from surrounding material. 3mm spot size. Requires camera to position the X-MET on the sample accurately.

Hitachi X-MET8000 XRF Analyzer
