Description

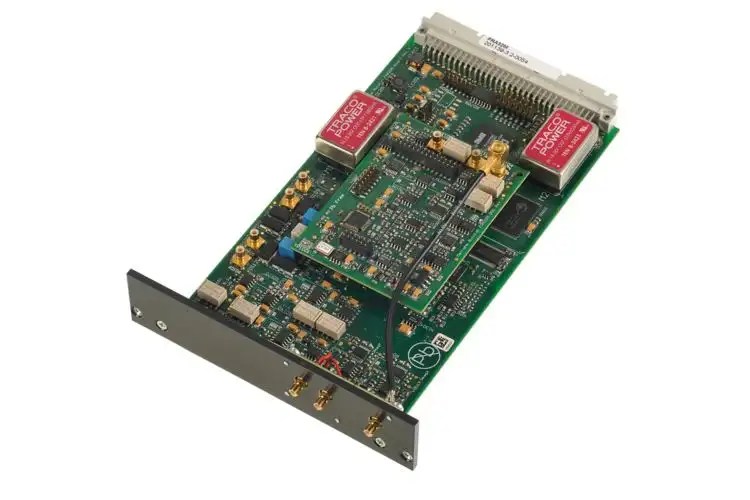

FRA32M Module Metrohm Autolab EIS Freq 10 µHz – 32 MHz
The FRA32M Module EIS provides the means to perform impedance and electrochemical impedance measurements in combination with the Autolab. This module allows one to perform both potentiostatic and galvanostatic impedance measurements over a wide frequency range of 10 µHz to 32 MHz (limited to 1 MHz in combination with the Autolab PGSTAT). In addition to the classical EIS, the NOVA software also allows the users to modulate other outside signals such as rotation speed of a rotating disk electrode or the frequency of a light source to perform Electro-hydrodynamic or Photo-modulated impedance spectroscopy.
Comes with a powerful fit and simulation software for the analysis of impedance data.
- Tech specs
| Frequency range in Hz | 10 µHz – 32 MHz |
|---|---|
| Maximum frequency, in Hz, in combination with Autolab | 1 MHz |
| Frequency resolution in Hz | 0.003 % |
| Amplitude range in potentiostatic mode in volt | 0.2 mV to 0.350 V (RMS) |
| Amplitude range in galvanostatic mode in ampère | 0.0002 – 0.35 * Current range A (RMS) |
| Input range in volt | ± 10 |
Datasheet PDF :
