For Sale Megger FRAX 101 Sweep Frequency Response Analyzers Mint Condition
Package includes:
- Ground cable
- Four 3-meter braid sets
- Two C clamps
- Connection cables (18 meters)
- User guide
- Windows software
- Shop Warranty return 120 Days.

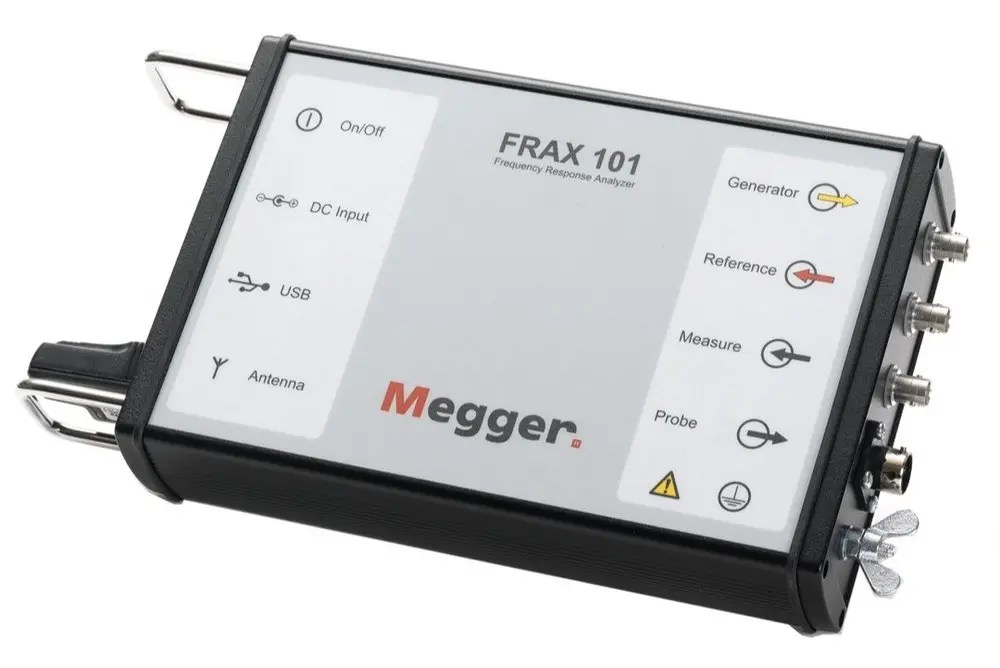

Megger FRAX 101 Sweep Frequency Response Analyzer
The Megger FRAX 101 is designed for transformer analysis, equipped to identify mechanical and electrical discrepancies that might go undetected by other diagnostic methods. This analyzer is capable of recording the distinctive characteristics of transformers, allowing for effective monitoring and maintenance. With its robust design and ease of connectivity, the FRAX 101 simplifies complex diagnostics and ensures reliability in data collection and analysis. It is an essential instrument for utilities and service companies, offering precise diagnostics to safeguard transformer operations.
Features:
- Smallest and most rugged SFRA instrument in the industry.
- High dynamic range and accuracy, meeting international standards for SFRA measurements.
- Repeatable results ensured by superior cabling technology and standardized grounding techniques.
- Wireless communication and USB connectivity for data transfer and control.
- Battery-operated for field use.
- Advanced analysis software with tools for detailed data interpretation.
- Continuity control of ground connections for reliable testing.
Factory Specifications:
| Brand |
Megger
|
| Model Name/Number |
FRAX101
|
| Frequency Range |
0.1 Hz – 25 MHz, user selectable
|
| Application field |
The instrument is intended for use in medium and high-voltage substations and industrial environment
|
| Operating Temperature |
-20 Degree Celsius to +55 Degree Celsius (-4 Degree F to +131 Degree F)
|
| Storage temperature |
-20 Degree Celsius to 70 Degree Celsius (-4 Degree F to +158 Degree F)
|
| Humidity |
< 95% RH, non-condensing
|
| EMC |
2004/108/EC
|
| LVD |
2006/95/EC
|
| DC power supply |
11- 16 V DC
|
| AC power supply |
90 – 264 V AC, 47 – 63 Hz
|
| Internal battery |
49 Wh/4.4 Ah (optional)
|
| Instrument Dimension |
250 x 169 x 52 mm (9.84″ x 6.65″ x 2.05″)
|
| Transport case Dimension |
520 x 460 x 220 mm (20.5″ x 18.1″ x 8.7″)
|
| Instrument Weight |
1.4 kg (3.1 lbs) 1.8 kg (4 lbs) with battery
|
| Test method |
Sweep frequency (SFRA)
|
| Frequency resolution |
0.01%
|
| Frequency accuracy |
0.01% (measurement error)
|
| Level resolution |
0.001 dB
|
| Number of points |
Default 1046, Up to 32 000 points, user selectable
|
| Measurement time |
Default 64 s, fast setting, 37 s (20 Hz – 2 MHz)
|
| Points spacing |
Log., linear or both
|
| Sweep settings |
Individual settings for customer defined frequency bands. Linear and logarithmic scale or combinatio
|
| Internal noise level (average 20 Hz to 2 MHz) |
< -140 dB
|
| Dynamic range1) |
>15 0 d B
|
